Introducing the Latest Additions to the EVS Range

The EVS 500 range offers a capacity ranging between 4lbs/2kg to 10lbs/5kg, accommodating those producing smaller amounts of dross per de-dross. The EVS 500 range has the ability for single operation dedrossing of wave or selective soldering machines.

Its integrated hopper makes the transfer of dross from the wave or selective to the EVS simpler and safer, speeding up dedrossing times by up to 75%. This provides a cleaner wave with less maintenance, less downtime, a reduction in shorts and bridging as well as the potential to discontinue the use of messy wave oils and/or dross reduction powders.

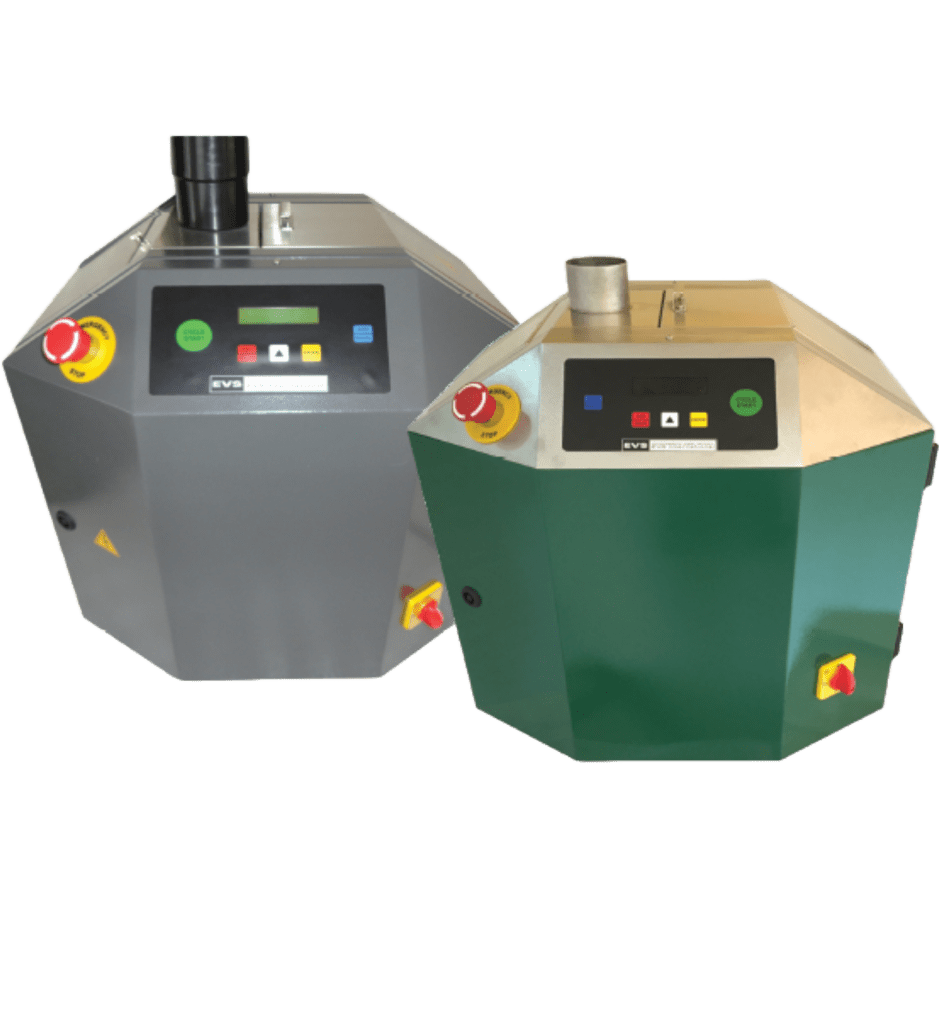

EVS500 & EVS500LF Desktop Model Only

This is the simplest form of the EVS500, which connects directly to your plant exhaust. The dross is expelled into the dross tray in the machine, which can be easily removed.

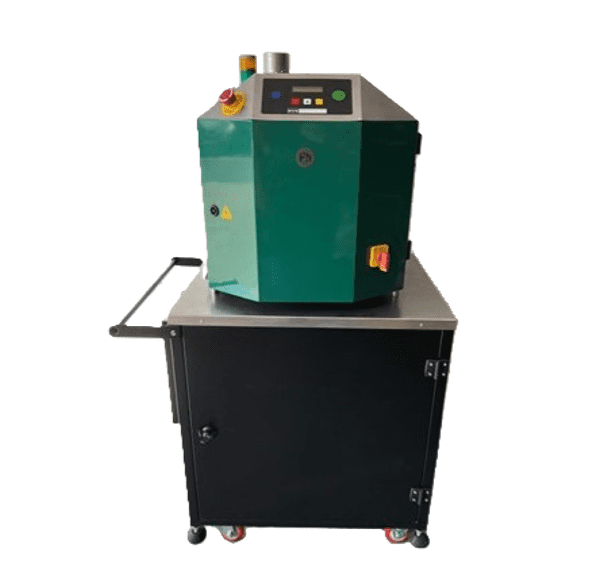

EVS500CAB & EVS500LFCAB Single Cabinet

This includes an automated dross chute, where the left-over powder is dispensed through a chute into the sealed dross bin. The EVS500 machine connects directly to your plant exhaust.

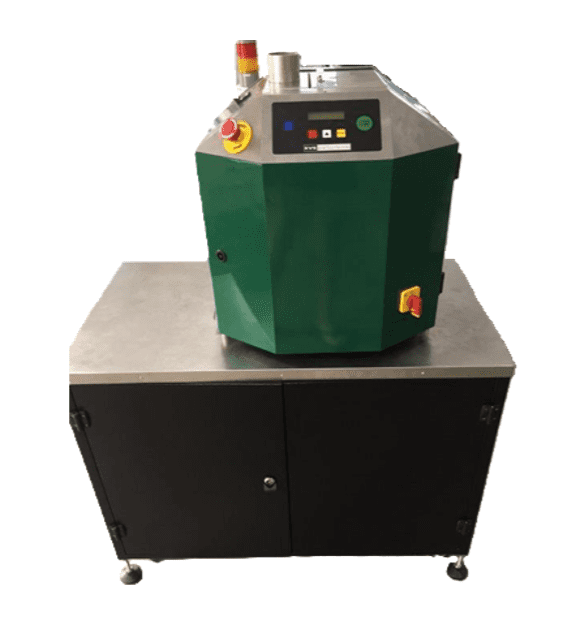

EVS500CABF & EVS500LFCABF Double Cabinet

This includes an automated dross chute and a fume extraction unit. This unit filters the fumes produced from the machine and prevents any smells from being emitted into the plant. The EVS500 machine connects directly to this fume extraction unit.

Significantly Reducing Your Soldering Costs

The EVS 500 range offers a capacity ranging between 4lbs/2kg to 10lbs/5kg, accommodating those producing smaller amounts of dross per de-dross. The EVS 500 range has the ability for single operation dedrossing of wave or selective soldering machines.

Its integrated hopper makes the transfer of dross from the wave or selective to the EVS simpler and safer, speeding up dedrossing times by up to 75%. This provides a cleaner wave with less maintenance, less downtime, a reduction in shorts and bridging as well as the potential to discontinue the use of messy wave oils and/or dross reduction powders.

EVS500 & EVS500LF Desktop Model Only– this is the simplest form of the EVS500, which connects directly to your plant exhaust. The dross is expelled into the dross tray in the machine, which can be easily removed.

EVS500CAB & EVS500LFCAB Single Cabinet– this includes an automated dross chute, where the left-over powder is dispensed through a chute into the sealed dross bin. The EVS500 machine connects directly to your plant exhaust.

EVS500CABF & EVS500LFCABF Double Cabinet– this includes an automated dross chute and a fume extraction unit. This unit filters the fumes produced from the machine and prevents any smells from being emitted into the plant. The EVS500 machine connects directly to this fume extraction unit.

Benefits Using EVS-500

Self-contained Process With Integral Safety Features

The EVS Systems operate on an automatic cycle, so the operator doesn’t have to spend valuable time with the machine. Simply load the machine and press the start button and the EVS will take care of the rest. The systems feature multiple safety locks and alerts to ensure the safety of operators, and as the systems run in a self-contained process, no fumes or smells are expelled onto the shopfloor as they are processed either through the filtration system in the machine cabinet or through your exhaust.

Recovers 60-80%+ of Solder from your Dross

Through its patented process, the EVS 11K/18K systems can recover up to 80%+ of solder- check out our latest case studies to see how much we’ve saved some of our customers. With the cost of solder at an all-time high, there is no better time to invest in an EVS system. The solder recovered is always within tolerance to the solder both/pot (please see Solder Quality), so you can put these recovered bars straight into your bath/pot without any risk of contamination. The remaining dross can be sold back to your solder supplier or recycler.

Return on Investment and Cost Benefits

The EVS500 systems use a process that separates solder without chemicals, reducing solder costs by up to 50% and dross waste by up to 70%. You will see a return on your investment within months, not years, which is achieved by recovering 60-80%+ of solder from your dross. If you have stored dross at your facility you could process it in the EVS500 system and see your ROI improve even further. Use our calculator to see for yourself, or contact EVS for more details tailored to your solder usage.

ISO14001 Compliant

The EVS500 Systems can help you to gain and retain ISO14001 accreditation. The systems help you to REDUCE your purchase of new solder bars, REUSE your solder by processing your dross in an EVS which separates and returns the solder into the tray to give you clean solder bars, and RECYCLE the dross from your wave machine by recovering the solder that would normally be sold back to your solder supplier for a fraction of its real value.
